TIA Portal V21: Always Ready for Tomorrow through Efficient Engineering
3/5/2026
As industrial automation systems become more complex, engineering tools must evolve to ensure higher reliability, faster commissioning, and seamless collaboration. TIA Portal V21 introduces powerful enhancements designed to increase efficiency, protect critical process data, and bridge the gap between OT and IT-driven workflows.
At Zahabi Co, we continuously evaluate new technologies to deliver robust and future-ready automation solutions. Here’s how V21 raises the standard.
Smarter Data Handling for SIMATIC S7-1500
One of the most impactful upgrades in V21 is the ability to prevent Data Block (DB) reinitialisation during structural changes.
When downloading to an S7-1500 (FW 4.1), engineers can now retain actual runtime values—even when inserting new variables anywhere inside optimised data blocks.
Why this matters:
- No loss of critical production data
- Reduced downtime during updates
- Elimination of manual snapshot backups
- Lower risk of human error
For live production environments, this is a major step forward in maintaining operational continuity while implementing system improvements.
Streamlined Software Management with TIA Package Manager
Managing software versions across engineering teams can be challenging. V21 introduces the TIA Package Manager, a centralised tool for:
- Searching and installing global libraries
- Managing TIA Portal Add-Ins
- Handling standalone engineering tools
- Performing compatibility checks
- Tracking software versions
This ensures all team members work with validated and synchronised environments — reducing commissioning delays caused by version mismatches.
Collaborative & Cloud-Based Engineering

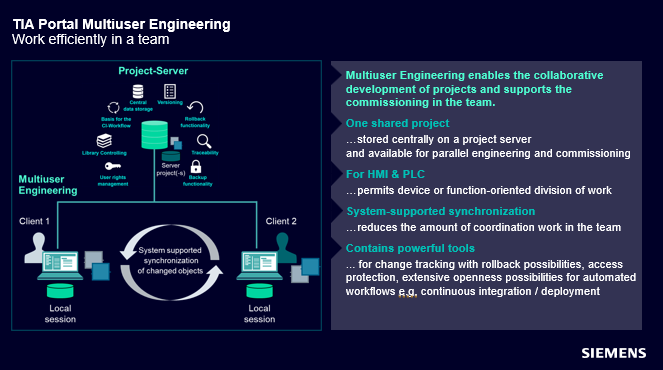

Modern automation projects often involve multiple stakeholders across locations. V21 strengthens Multiuser Engineering, allowing multiple engineers to work simultaneously on a shared project stored on a central server.
This enables:
- Parallel PLC and HMI development
- Faster commissioning
- Improved project transparency
Cloud capabilities are extended via the TIA Project-Server Cloud, hosted within the Industry Premium Portal. This “TIA Portal as a Service” model allows secure project access anytime, anywhere — ideal for integrating external suppliers without exposing internal IT infrastructure.
Secure communication with SIMATIC hardware is handled through the TIA Portal Cloud Connector, now supporting high-performance HTTPS downloads.
Modular Automation with MTP Standard
V21 continues to support modular plant design through the Module Type Package (MTP) standard.
MTP enables standardised descriptions of autonomous equipment modules, known as Process Equipment Assemblies (PEAs). Using SIMATIC MTP Studio, engineers can generate MTP files in a single click — exporting:
- Control modules
- Services
- OPC UA configurations
This simplifies system integration and supports scalable, flexible plant architectures — a key requirement in modern process industries.
Enhanced Security & Controller Innovations
Security remains a top priority.
Software Integrity Protection
V21 introduces automated integrity and authenticity verification during installation and runtime, helping detect unauthorised software modifications and strengthening cybersecurity compliance.
SIMATIC S7-1200 G2 Enhancements

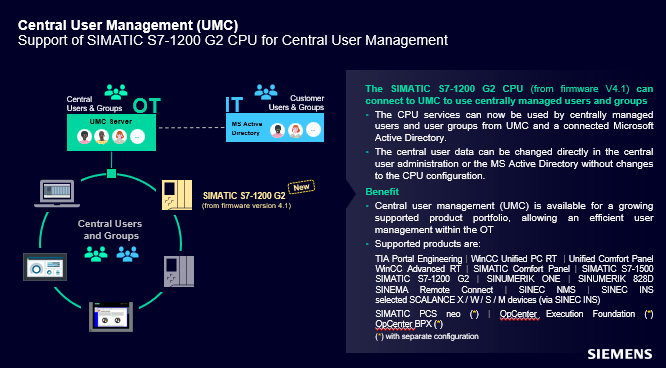

The S7-1200 G2 (FW 4.1) now supports Central User Management (UMC), enabling authentication through Microsoft Active Directory. This removes the need to reconfigure CPUs when user credentials change — improving scalability and security governance.
Multicore Performance
For motion and high-speed applications, V21 introduces multicore support, reducing application cycle calculation times by up to 30% by distributing processing across CPU cores.
Bridging OT and IT: Version Control Integration

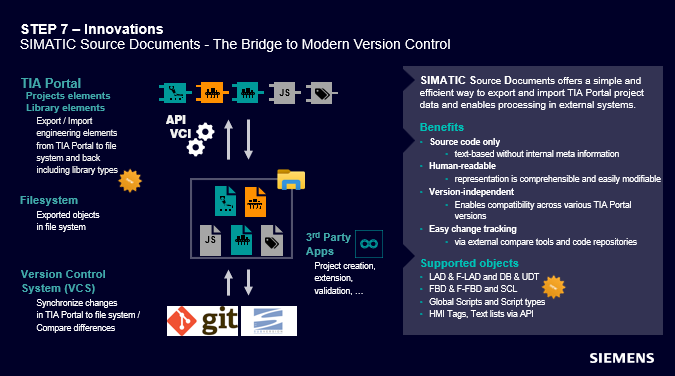

A significant step toward IT-like engineering workflows is the introduction of SIMATIC Source Documents.
These convert project elements (LAD, FBD, SCL) into clean, human-readable text files — without internal metadata.
This enables:
- Integration with version control systems like Git and SVN
- Easier change tracking
- Use of external comparison tools
- Improved collaboration with software-oriented teams
For companies adopting DevOps-style automation development, this is a major advancement.
The Future: AI in Automation Engineering
Looking ahead, Siemens plans to integrate generative AI with Engineering Copilot TIA (expected Spring 2026).
This tool will allow engineers to generate PLC and HMI projects using natural language prompts — automatically creating SCL code and documentation within seconds.
AI-driven engineering represents a transformative shift in productivity, standardisation, and knowledge transfer within industrial automation.
With improvements in data retention, cybersecurity, cloud collaboration, modularisation, and AI integration, TIA Portal V21 sets a new benchmark for industrial automation software.
At Zahabi Co, we leverage these innovations to deliver:
- Reliable PLC programming
- Scalable plant architectures
- Secure automation systems
- Faster commissioning cycles
If you're planning an upgrade or new automation project, our team is ready to help you implement the full capabilities of Siemens’ latest engineering platform.
